  • ABC Dimensions
  • RA 71 Dimensions

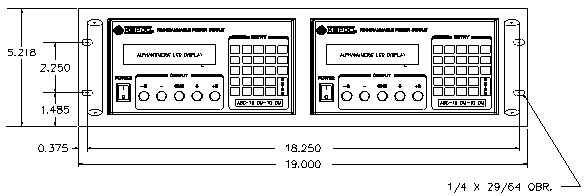

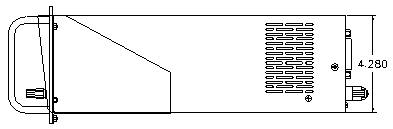

  • RA 72 Dimensions
  • Dimensions are in inches.

    Tolerance: ± 1/64" between mounting holes; ± 1/32" other dimensions

    Dimensions

    Dimensions

    Dimensions

    NOTES:

    To mount ABC units in rack adapter P/N 168-0131 (RA 72):

    1. Remove bail and (4) feet from each power supply.
    2. Use (6) screws, 6-32 x 1/4 (Kepco P/N 101-0212) amd (6) int. lock washers for #6 screw (Kepco P/N 103-0015) marked "A" from bottom of the RA 72 to secure each power supply.
