Fractional dimensions are in inches, dimensions in [brackets] are in millimeters.

Tolerance: ± 1/64" [0.4] between mounting holes; ± 1/32" [0.8] other dimensions.

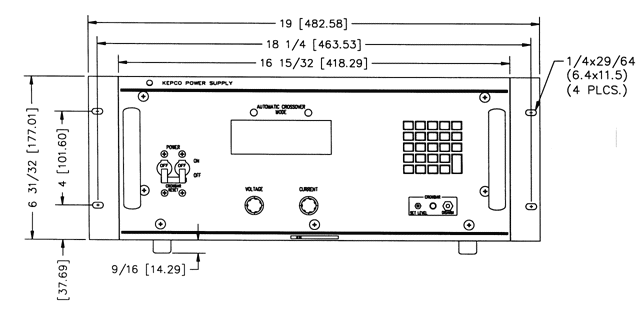

Dimensions, Front View

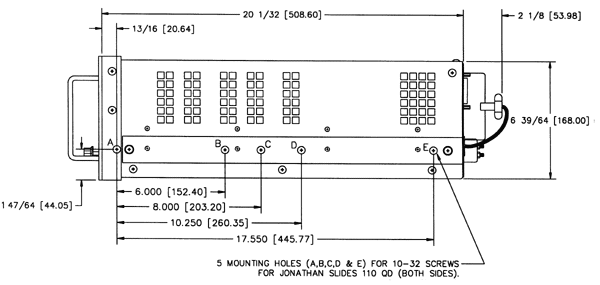

Dimensions, Side View

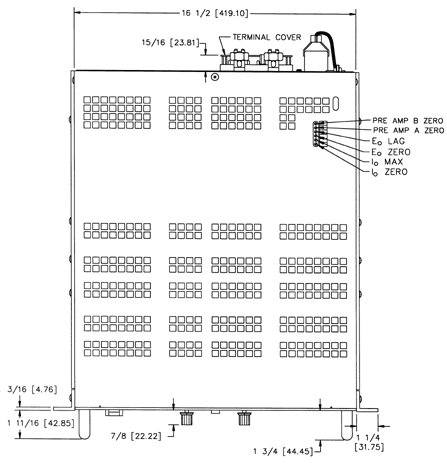

Dimensions, Top View
