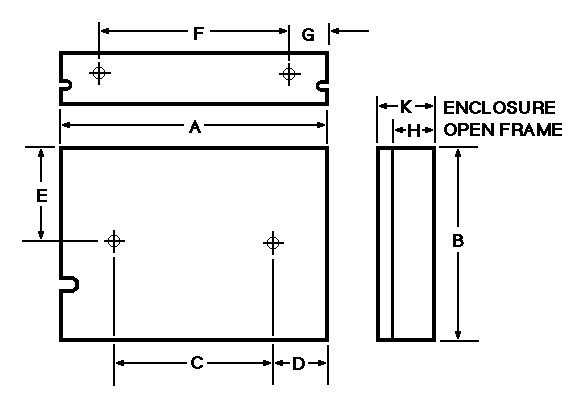

OUTLINE DRAWINGS

OPEN FRAME DIMENSIONS
(HxWxD)

  • 15W:
    • inches: 0.79 x 2.76 x 3.74
    • mm: 20 x 70 x 95
  • 25W:inches
    • 0.98 x 2.76 x 4.53
    • mm: 25 x 70 x 115
  • 50W:inches
    • 0.98 x 3.74 x 5.12
    • mm: 25 x 95 x 130

CASED DIMENSIONS
(HxWxD)

  • 15W case (CA 21):
    • inches 0.9 x 2.76 x 3.74
    • mm: 23 x 70 x 95
  • 25W case (CA 22):
    • inches: 1.12 x 2.76 x 4.53
    • mm: 28.5 x 70 x 115
  • 50W case (CA 23):
    • inches: 1.12 x 3.74 x 5.12
    • mm: 28.5 x 95 x 130

WEIGHT
(Packed for shipment)

  • 15W: 5.60oz, 160gm
  • 25W: 5.98oz, 170gm
  • 50W: 8.80oz, 250gm

Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.
Tolerances: 0.4" (1.0mm) unless otherwise noted
Munting: 4-40 tapped holes --(2) side; maximum screw penetration 0.2" (5mm)

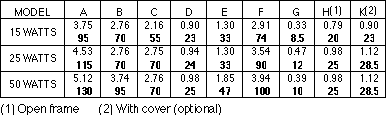

FAK Dimensions

FAK Part Numbers
