SERIES FAW

TOUR

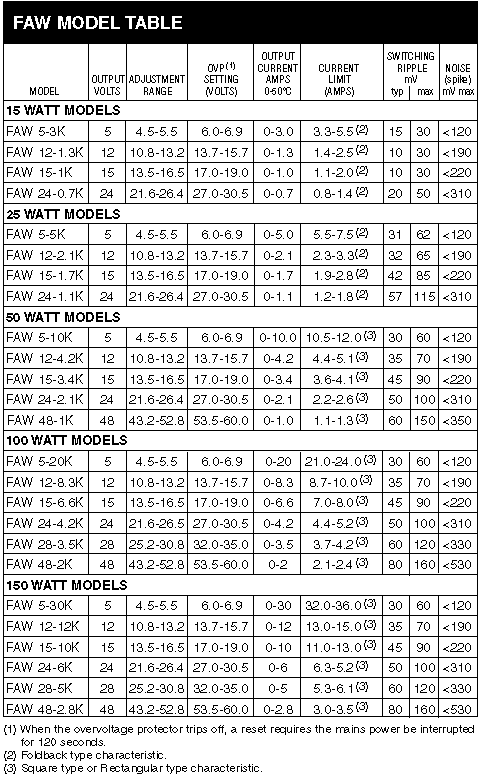

MODELS

FEATURES

GENERAL
SPECIFICATIONS

INPUT
CHARACTERISTICS

OUTPUT
CHARACTERISTICS

OUTLINE
DIMENSIONS

DIN RAIL
MOUNTING

NOTE: Some FAW Models are no longer available. Only those models listed on the BUY page are available.
Suggested replacements are as follows:
For FAW 5-3K see JBW 05-3R0 and RKW 5-6K.
For FAW 5-5K see JBW 5-6R0 and RKW 5-6K.
For FAW 5-10K see JBW 05-10R and RKW 5-10K and RTW 5-10K and RTW 5-10KC.
For FAW 5-20K see JBW 5-20K and RKW 5-20K and RTW 5-20K and RTW 5-20KC.
For FAW 5-30K see JBW 5-30K and RKW 5-30K and RTW 5-30K and RTW 5-30KC.
For FAW 12-2.1K see RKW 12-2.5K and JBW 12-2R5.
For FAW 12-4.2K see RKW 12-4.3K and RTW 12-4.3K and RTW 12-4.3KC and JBW 12-4R3.
For FAW 12-8.3K see RKW 12-8.5K and RTW 12-8.4K and RTW 12-8.4KC and JBW 12-8.5K.
For FAW 12-12K see RKW 12-13K and RTW 12-12K and RTW 12-12KC and JBW 12-12K.
For FAW 15-3.4K see RKW 15-3.5K and RTW 15-3.5K and RTW 15-3.5KC and JBW 15-3R5 and JBW 15-5K.
For FAW 15-6.6K see RKW 15-7K and RTW 15-6.7K and RTW 15-6.7KC and JBW 15-5K.
For FAW 24-0.7K see JBW 24-0R7 and RKW 24-1.3K.
For FAW 24-1.1K see RKW 24-1.3K and JBW 24-1R3.
For FAW 24-2.1K see RKW 24-2.2K, RTW 24-2.2K and RTW 24-2.2KC and JBW 24-2R1.
For FAW 24-4.2K see RKW 24-4.5K, RTW 24-4.2K and RTW 24-4.2KC and JBW 24-4.3K.
For FAW 24-6K see RKW 24-6.5K , RTW 24-6.3K and RTW 24-6.3KC and JBW 24-6.3K.
For FAW 28-3.5K see RKW 28-3.8K and RTW 28-3.6K and RTW 28-3.6KC.
For FAW 28-5K see RKW 28-5.5K and RTW 28-5.4K and RTW 28-5.4KC.
For FAW 48-1K see RKW 48-1.1K and RTW 48-1.1K and RTW 48-1.1KC.
For FAW 48-2K see RKW 48-2.1K and RTW 48-2.1K and RTW 48-2.1KC.
For FAW 48-2.8K see RKW 48-3.3K and RTW 48-3.2K and RTW 48-3.2KC.

NOTE: MA mounting adapters which allow seamless replacement (using the same four mounting holes) of FAW 50W, 100W and 150W models with the corresponding RKW models are available. For replacement of FAW models with other model groups, or when using two mounting holes on the edges, please contact Kepco for more information.
