SERIES FAW Download Product Specifications (PDF)
TOUR PREVIOUS NEXT
MODELS
FEATURES
GENERAL
SPECIFICATIONS
INPUT
CHARACTERISTICS
OUTPUT
CHARACTERISTICS
OUTLINE
DIMENSIONS
DIN RAIL
MOUNTING

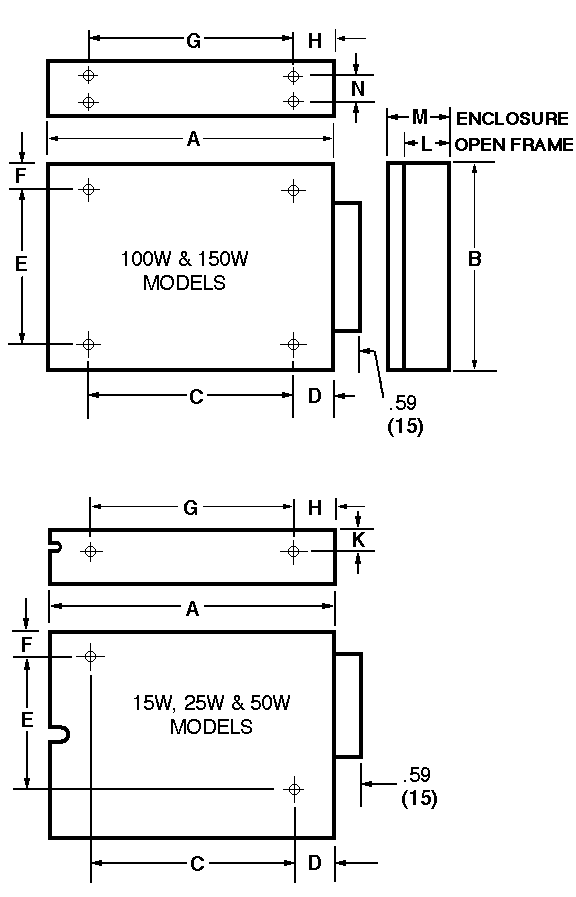

OUTLINE DRAWINGS

OPEN FRAME DIMENSIONS
(HxWxD)

  • 15W:
    • inches: 0.98 x 3.74 x 3.94
    • mm: 25 x 95 x 100
  • 25W:
    • inches: 0.98 x 3.74 x 4.92
    • mm: 25 x 95 x 125
  • 50W:
    • inches: 0.98 x 3.74 x 6.50
    • mm: 25 x 95 x 165
  • 100W:
    • inches: 1.38 x 3.74 x 7.87
    • mm: 35 x 95 x 200
  • 150W:
    • inches: 2.01 x 3.74 x 7.87
    • mm: 51 x 95 x 200

CASED DIMENSIONS
(HxWxD)

  • 15W case (CA 24):
    • inches: 1.18 x 3.74 x 3.94
    • mm: 30 x 95 x 100
  • 25W case (CA 25):
    • inches: 1.18 x 3.74 x 4.92
    • mm: 30 x 95 x 125
  • 50W case (CA 26):
    • inches: 1.22 x 3.74 x 6.50
    • mm: 31 x 95 x 165
  • 100W case (CA 27):
    • inches: 1.50 x 3.74 x 7.87
    • mm: 38 x 95 x 200
  • 150W case (CA 28):
    • inches: 2.17 x 3.74 x 7.87
    • mm: 55 x 95 x 200

WEIGHT
(Packed for shipment)

  • 15W: 9.52oz, 270gm
  • 25W: 10.68oz, 300gm
  • 50W: 15.90oz, 400gm
  • 100W: 2.2lbs, 1.0Kg
  • 150W: 2.6lbs, 1.2Kg
Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.
Tolerances: ± 0.04" (1.0mm) unless otherwise specified
Mounting: 4-40 tapped holes; maximum screw penetration 02." (5mm)
FAW Dimension Drawing

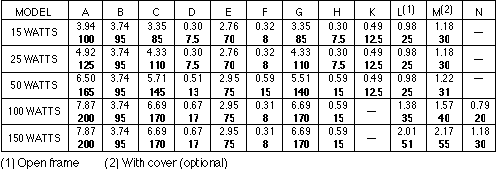

FAW Dimension Table
