SERIES FMP
OVERVIEW

FMP TOUR

FMP
MODELS

GENERAL
SPECIFICATIONS

INPUT
CHARACTERISTICS

OUTPUT
CHARACTERISTICS

OUTLINE
DIMENSIONS

3W Models

10W Models

10W PCB Mount

DIN RAIL
MOUNTING

SERIES FCP
3W, 10W
DUAL OUTPUT
±12V, ±15V

NOTE: Some FMP Models are no longer available. Suggested replacements are listed below.
Model No Longer Available	Suggested Replacement
FMP 3W Series	RKW 30W Series	JBW 10W Series
FMP 5-0.6K	RKW 5-6K	JBW 05-2R0
FMP 24-0.13K	RKW 24-1.3K	JBW 24-0R5
FMP 10W Series	RKW 30W Series	JBW 10W Series
FMP 5-2K	RKW 5-6K	JBW 05-2R0
FMP 12-0.85K	RKW 12-2.5K	JBW 12-0R9
FMP 15-0.7K	RKW 15-2K	JBW 15-0R7
FMP 24-0.45K	RKW 24-1.3K	JBW 24-0R5

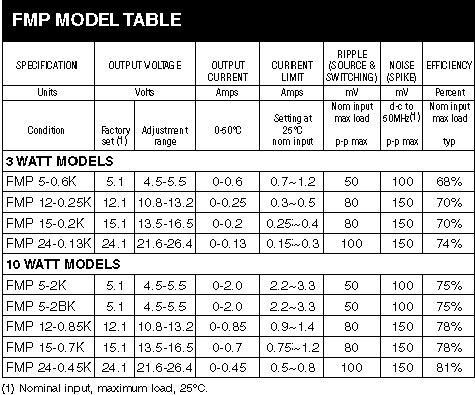

FMP MODELS
