KEPCO, INC. SERIES JQE 1/2 RACK OUTLINE DIMENSIONS

		HELP	Kepco Power Supplies
	Products Selection Help New Releases Product Overview >> Product Overview Instrument Modular DIN Rail Mount RoHS Compliant Hot Swap GPIB Control Custom Solutions Rack Adapters Accessories Product Brochures GSA Schedule Applications Automotive Component Test Solar Cell Test Semiconductor Production MIL Aerospace Test Bench Top High Voltage (150V-2KV) OEM Support Drivers Product Support Operator Manuals Service Manuals Trade Shows Reps & Distributors Applications Handbook Links Nomographs Literature Brochures Operator Manuals Service Manuals Catalog (On-line) Catalog (Printed) Contact Us Address Phone/Fax E-Mail Directions Trade Shows Queries Reps & Distributors Careers Warranty Registration About Company Profile ISO 9000 News Ordering Careers Privacy Careers BATTERY CHARGERS

SERIES JQE
OVERVIEW

JQE TOUR

JQE
MODELS

JQE
FEATURES

GENERAL
SPECIFICATIONS

STATIC
SPECIFICATIONS

MECHANICAL
SPECIFICATIONS

DIMENSIONS: · 1/4 RACK
· 1/2 RACK
· FULL RACK

Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.

Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions

Panels: per MIL-STD 189

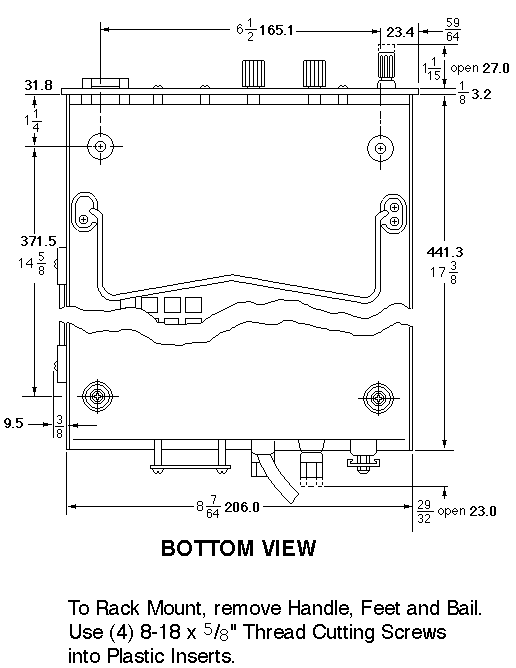

JQE 1/2 RACK DIMENSIONS, BOTTOM VIEW

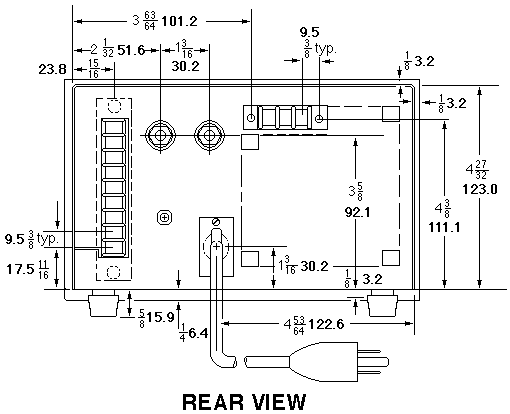

JQE 1/2 RACK DIMENSIONS, REAR VIEW
