| Series MBT-G Interface Functions |
|

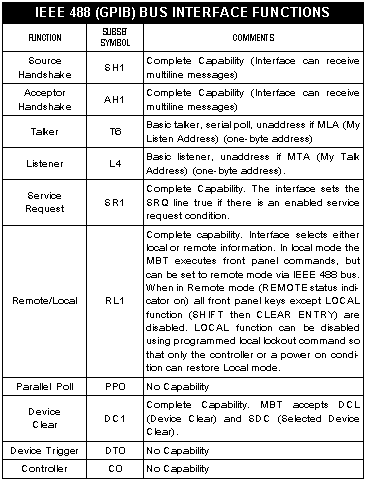

The table below defines the interface capabilities of the MBT-G (Talker/Listener)
relative to the IEEE 488 (GPIB) bus (reference document ANSI/IEEE Std 488: IEEE
Standard Digital Interface for Programmable Instrumentation) communicating with
a Host Computer–Controller (Talker/Listener).
|
