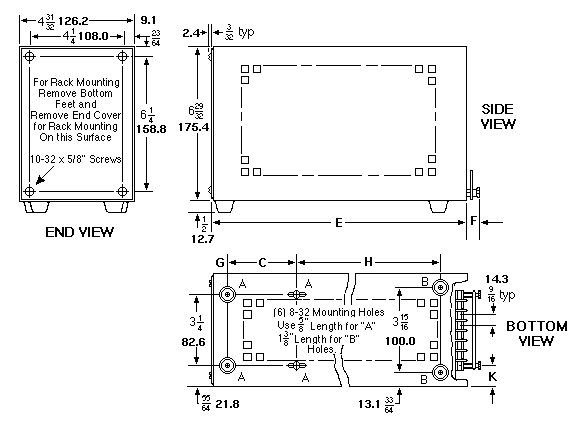

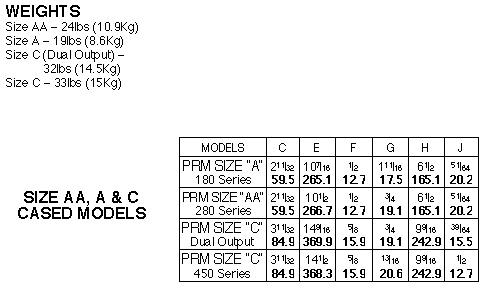

| Series PRM Dimensions - Sizes AA, A and C (Cased) |
Fractional dimensions in light face type are in inches, dimensions in bold face type are in
millimeters. | Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions
|
KEPCO, INC. • 131-38 SANFORD AVENUE •
FLUSHING, NY. 11355 U.S.A.
TEL (718) 461-7000 • FAX (718) 767-1102
www.kepcopower.com • email: hq@kepcopower.com
©Copyright 2008, Kepco Inc. All rights reserved
