An external rear programming connector, PC 12, is an un-wired 50-pin printed-circuit edge-to-cable connector, providing access to all circuit features. The BOP is delivered with one (1) PC 15 connector, which is a PC 12 with jumpers wired for local (front-panel) operatlon. Spare connectors may be purchased from Kepco under the model number PC 12 for the unwired connector and PC 15 for a connector prewired for local operation. The pin-out for the unwired rear programming connector PC 12 is shown below for all models except BOP 5-20DL. The following illustration shows the pinout for the unwired rear programming connector PC 12 connector when used on BOP 5-20DL .

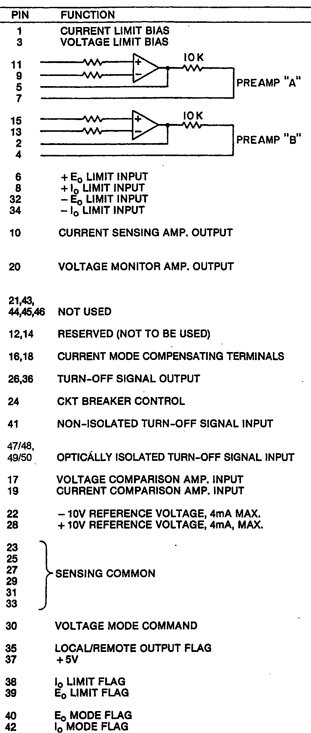

PC 12 PINOUT FOR ALL MODELS EXCEPT BOP 5-20DL

PC 12 PINOUT FOR BOP 5-20DL
