    [BOP 3/4 RACK (SEE BELOW)] [BOP FULL RACK DIMENSIONS]

    3/4 Rack Models (100 and 200 Watt Models except BOP 200-1M)

    Fractional dimensions in light face type are in inches, dimensions in bold face type are in millimeters.

    Tolerance: ± 1/64" (0.4) between mounting holes; ± 1/32" (0.8) other dimensions.

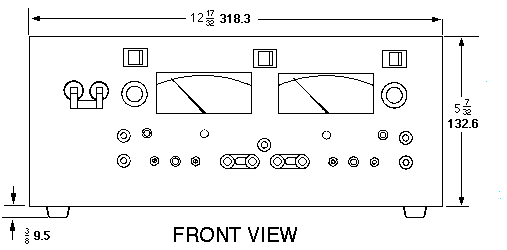

    BOP Dimensions

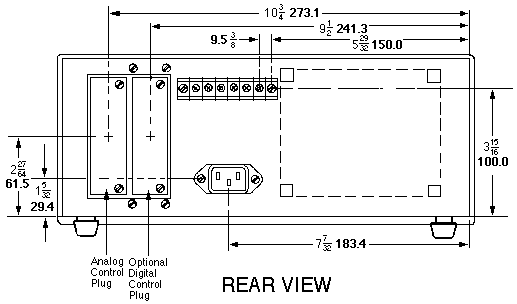

    BOP Dimensions

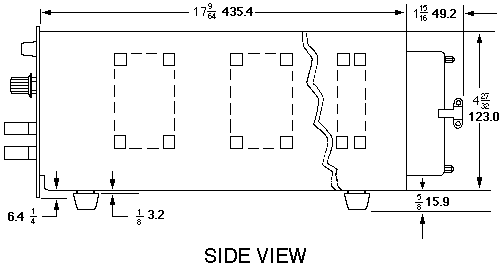

    BOP Dimensions

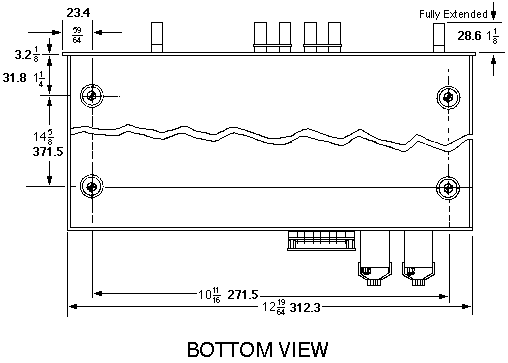

    BOP Dimensions
